Zella
- Sencilla instalación de encaje a presión
- Se suministra con tapas redondeadas para su uso opcional
- Puede cortarse a cualquier longitud deseada
- Las pestañas laterales permiten cubrir posibles imperfecciones en los ranurados
- Acabado en Blanco OPAL para evitar que se vena los puntos LED
- Estriado en las paredes laterales para un encaje perfecto
- Es compatible con tiras con una anchura de 8 mm o más
- Disponible en tamaños de 1,5 m ó 2,5 m
- Grado de Protección IP: IP20

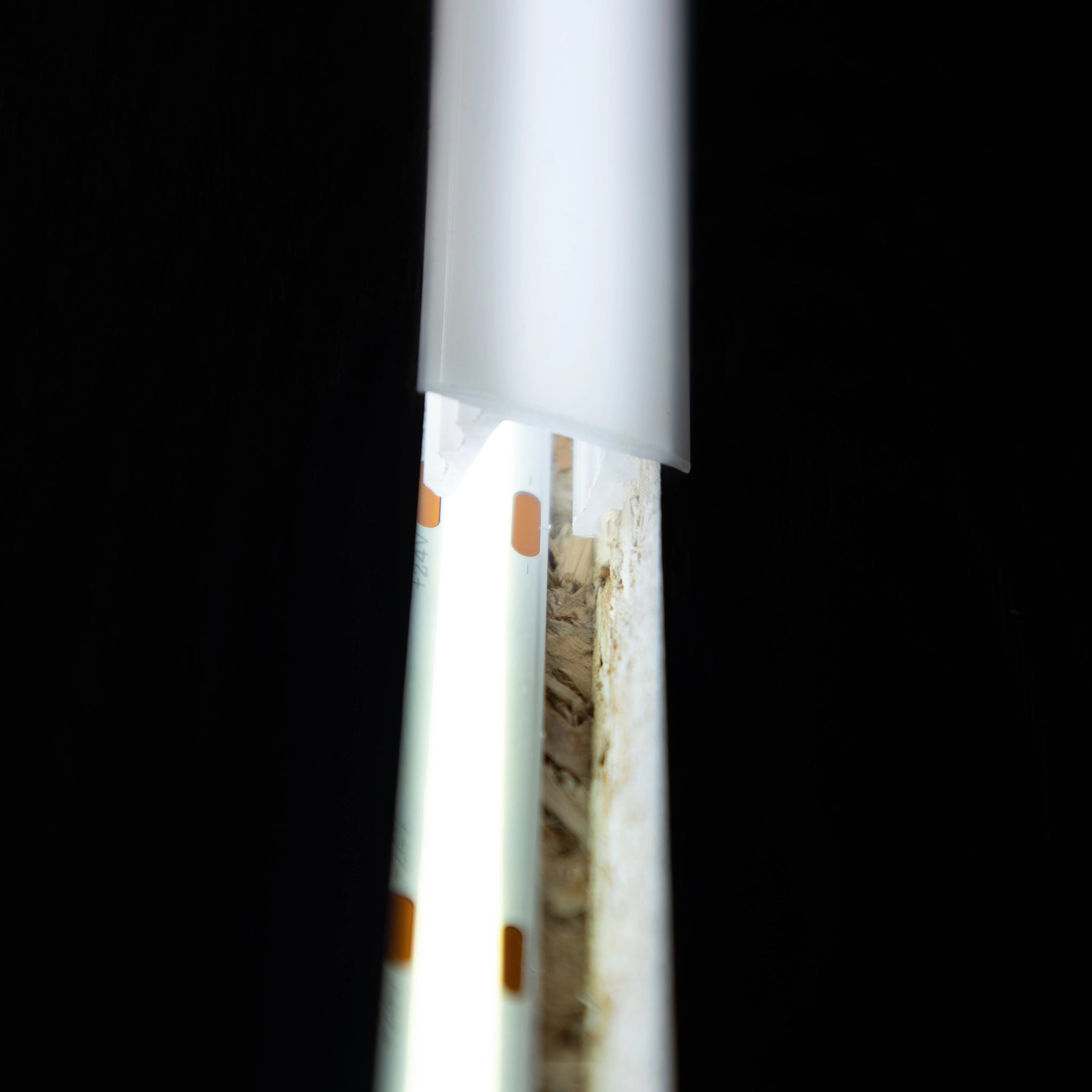

Diffuses light beautifully
Compatible with flexible strips of an 8mm width or more, providing a fully diffused light for a soft and even glow.
High quality finish
Wide wings cover any router imperfections and provide a flush recessed finish.
Considered application
Can be cut to any desired length.
Get the job done
Suggested Installation
Here is a package we'd recommend for setting up with the Zella recessed profile.
Titan+ Driver
Choose the correct 2-pin driver required for the installation. This model comes in 6W, 15W, 30W and 60W so have the right size to cover any job.
Ion 8

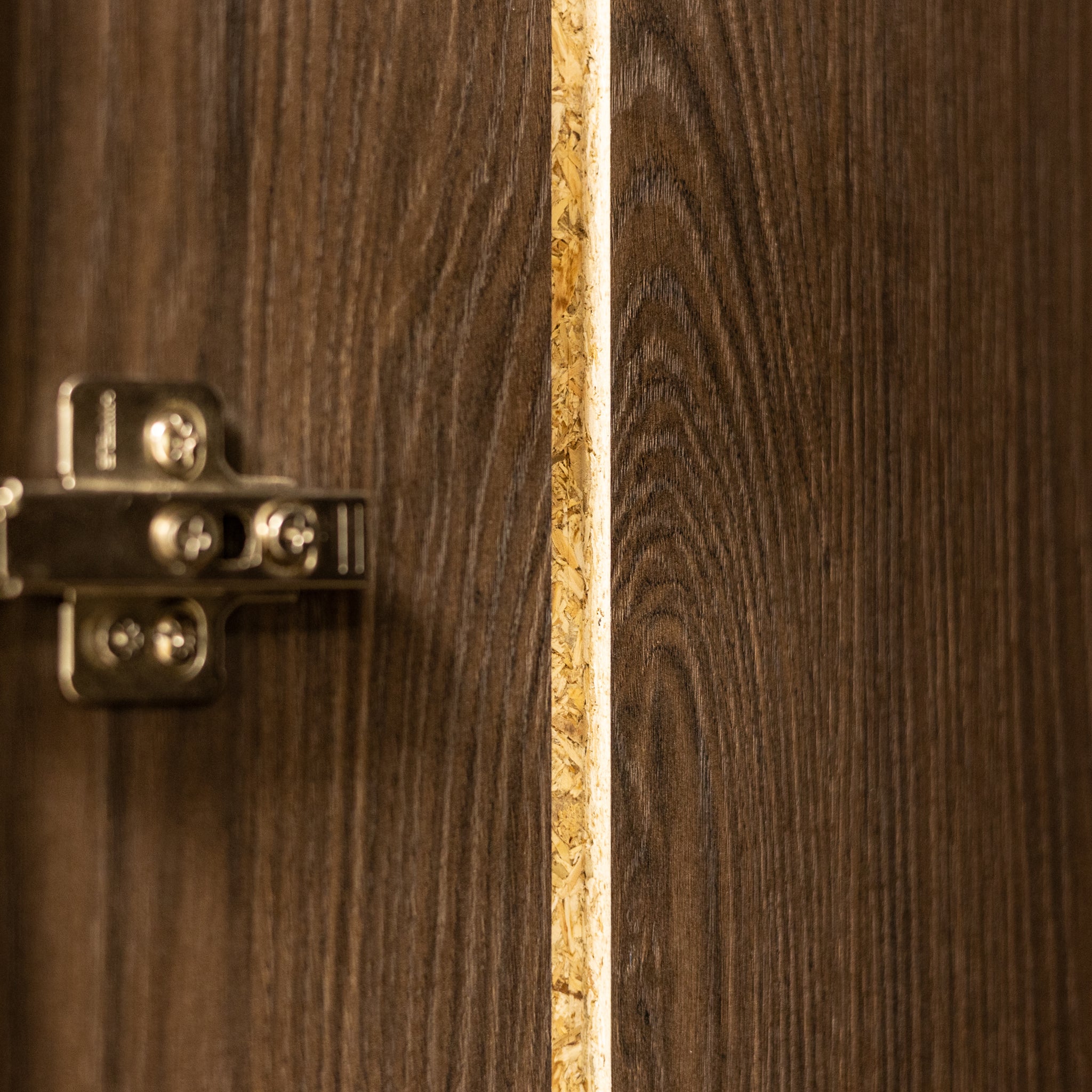

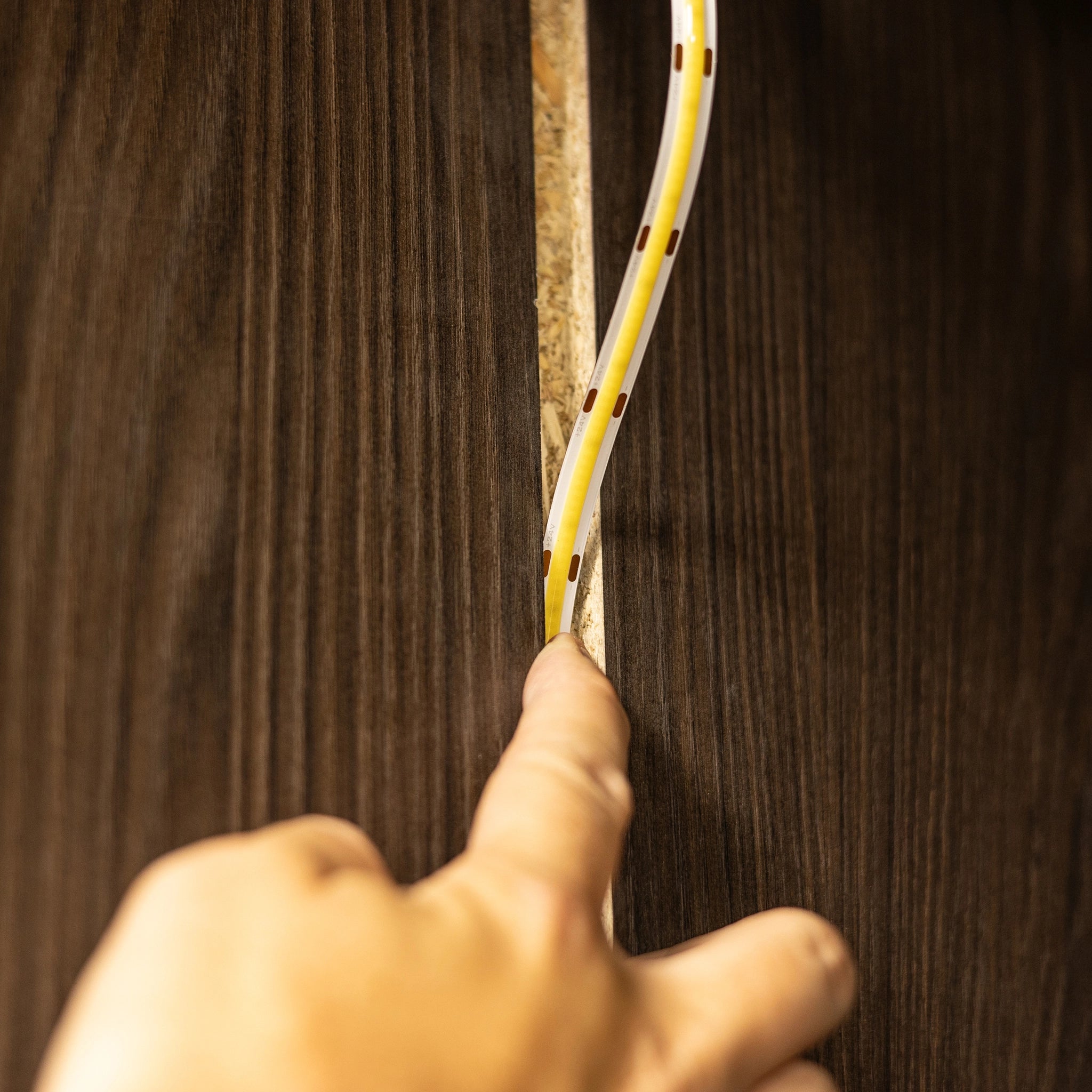

Easily plug the Ion 8 LED flexible strip in to the driver using the 2-pin connection. Then stick it in to the routed channel with the adhesive tape backing.
Zella

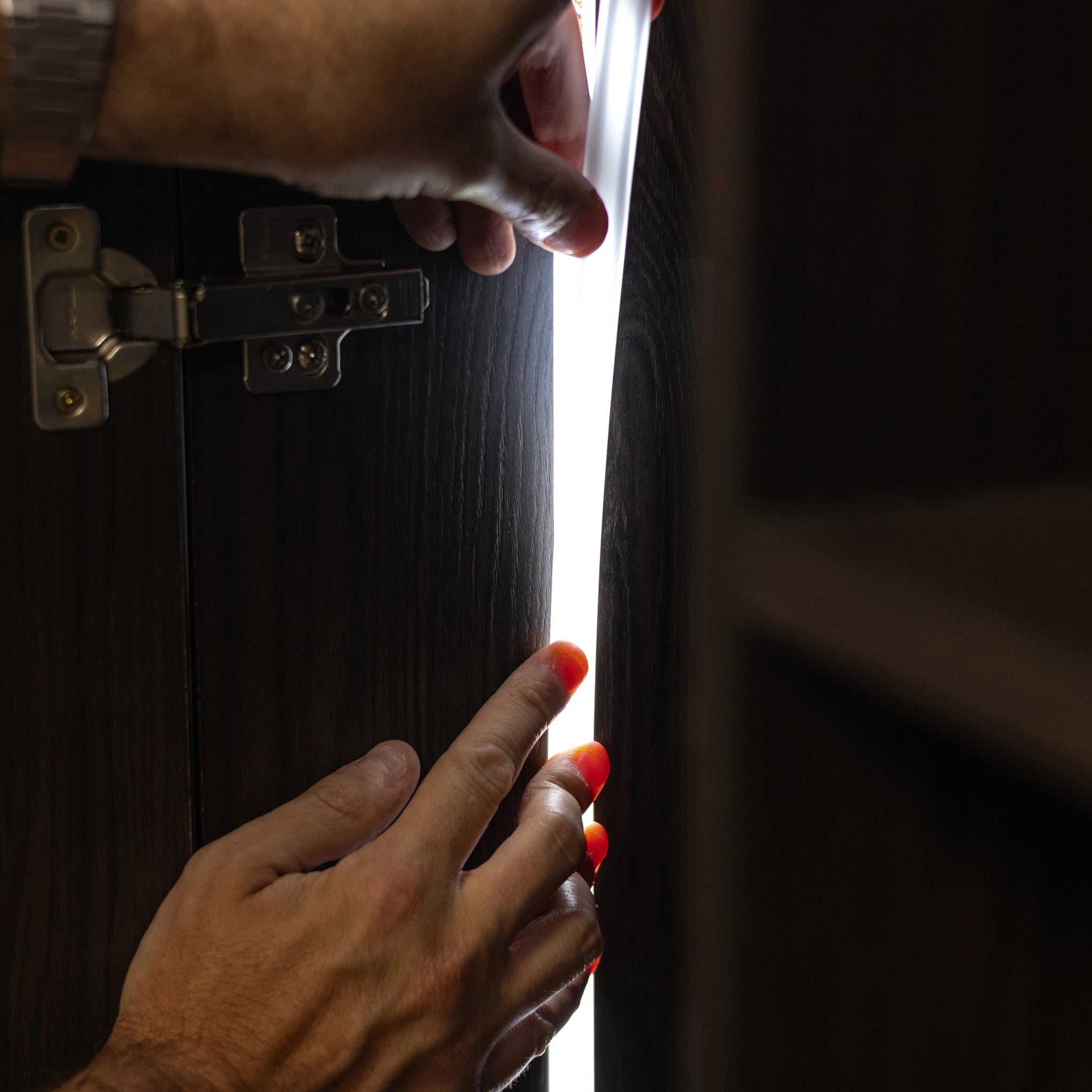

Push the Zella into the routed channel to cover the flexible strip. Use the supplied end caps at either end of the profile to finish the installation cleanly.
Registered Design Rights - 6341999
Conçu au Royaume-Uni

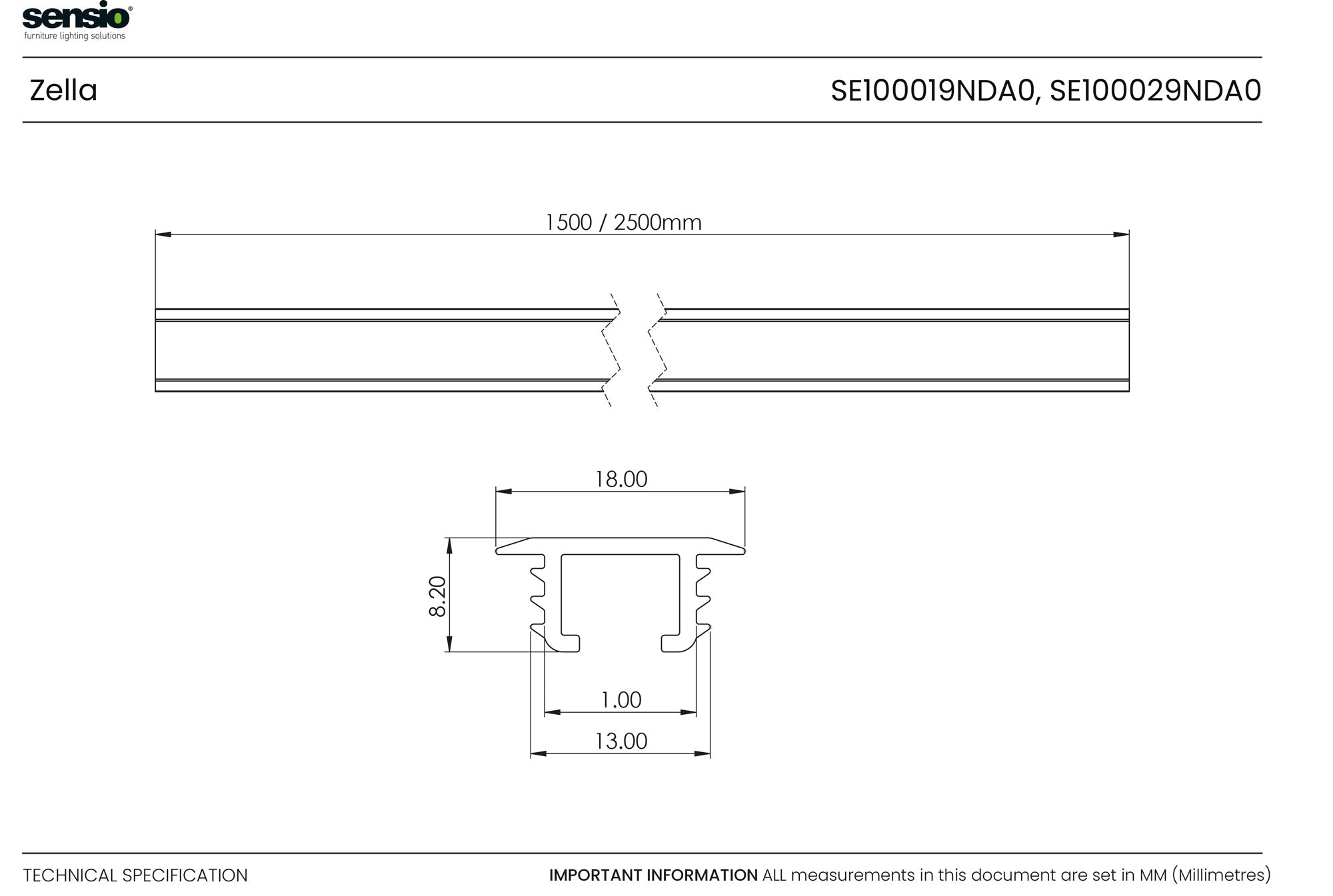

Product specification
Informations techniques
View and download the product details and technical specifications
