TrioTone® Touch Switch

SKU: SE090009A0

Simplifies colour selection

The TrioTone® controller allows you to select cool white, natural white or warm white with the touch of a button. The controller plugs directly into any standard LED driver, making any CCT product TrioTone® compatible. This enables the light source to be matched to any interior design style, as well as providing the flexibility to be changed in the future.

Cost-effective solution without compromising on functionality
Operation simplicity - A plug and Play solution
No need for remote, App or smart driver
Equipped with a memory function that retains the last used setting
Control temperature settings of CCT strip at 3000K, 4000K, and 6000K
Compatible with all Sensio CCT strips
Can be powered from a standard Sensio Titan+ Driver

Registered Design Right: 6371777

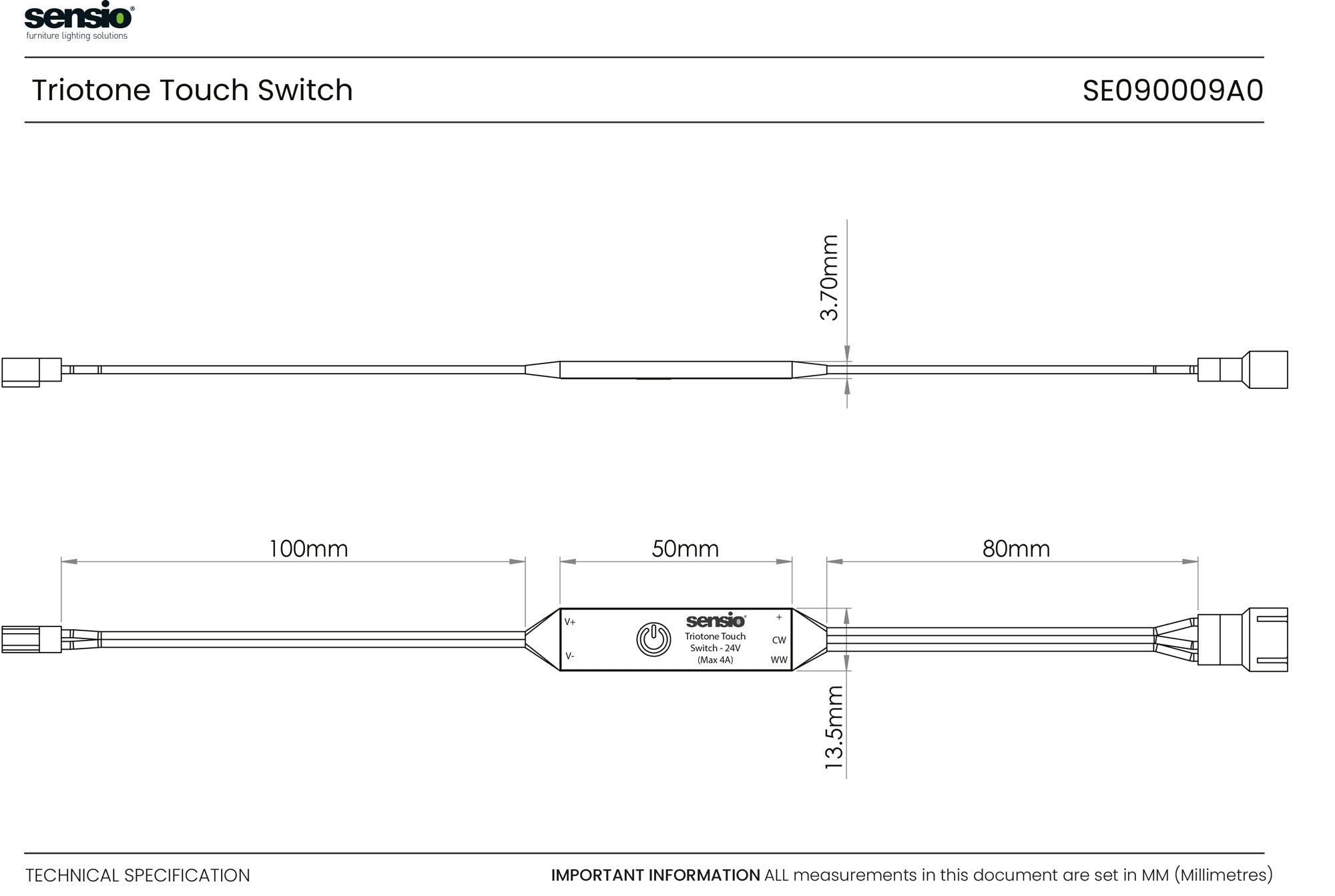

View or download technical specifications

Specification

Wattage: 2W (Per unit)
Voltage: 24V
Lumens: 170-190 lm

Titre:

Variant

Cost Effective

Easy solution for any installation without compromising on functionality. Just plug the switch in to the driver, connect your CCT light and choose your desired colour.

Makes Installation Easy

No need for additional controls such as a remote or app to choose the colour temperature. Just a simple tap of the touch button at installation and select between cool, natural or warm white.

Get the job done

Suggested Installation

Here is a package we'd recommend for setting up the TrioTone® Switch.

Titan+ Driver

Choose the correct driver for the LED strip you want to control. This model comes in 6W, 15W, 30W and 60W so we have options to cover any job.

Select your driver

TrioTone® Switch

Plug the TrioTone® Switch in to your Titan+ driver using the 2-pin connection.

CCT Flexible Strip

Join the flexible strip up to the 4-pin connection on the TrioTone® switch and tap the button to change the colour temperature.

Select your strip

Registered Design Right: 6371777
