Ray Profile Kit

SKU: SE10032NDN0

Profile with Pre-installed LED Flexible Strip

The Ray Profile kit has been designed with the installer in mind, combining the Ray profile and Neutron strip into one solution. Featuring a fully diffused inclined light source, ideal for applications where the light needs to be focused. This feature also prevents glare, making the profile ideal for use in cabinets or wardrobes.

  • Designed to make installation easier with the base, cover and strip merged into one solution
  • Fully diffused, angled light source ideal for wardrobes where the light needs to be focussed
  • Suitable for a range of applications including wardrobes and cupboards
  • Available in 4 lengths
  • Profile includes Neutron LED strip in Natural White
  • VHB (Very High Bond) adhesive tape backing for secure installation
  • Supplied with one set of end caps (additional end caps sold separately)
  • You can buy the Ray profile and the Neutron LED strip separately for a more bespoke installation
  • IP Rating: IP20
View or download technical specifications
Finish: Aluminium
Size: 400mm

Making installation easy

The Ray Profile Kit takes out any complication for your fitting with the pre-applied Neutron LED flexible strip. All you have to do is choose your driver.

Dedicated design

By pairing the Ray and Neutron together in one kit you can provide a fully diffused, angled, illumination to highlight key areas in wardrobes and cupboards.

Get the job done

Suggested Installation

Here is a package we'd recommend for setting up with the Ray Profile Kit.
You can work out what driver you need for your job on our driver calculator.

#finish_matt black #size_4 light kit

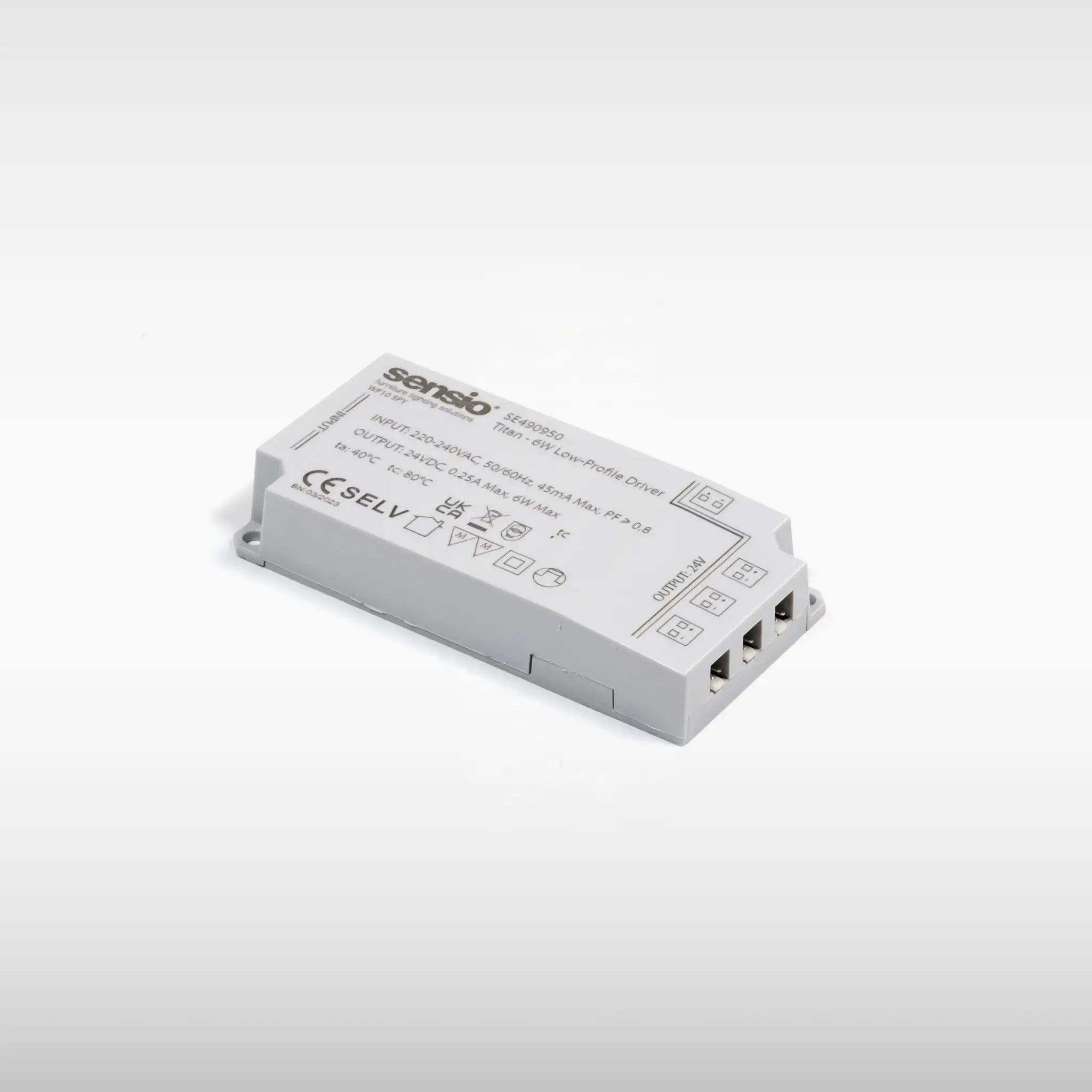

Titan+ Driver

Choose the correct 2-pin driver required for the installation. This model comes in 6W, 15W, 30W and 60W so have the right size to cover any job.

Ray Profile Kit

Connect the 2-pin cable of the pre-installed Neutron strip in to the driver and mount your Ray profile on the desired surface with the VHB adhesive tape.

Titan+ Wireless Door Sensor

Plug the receiver in to the driver and pair the wireless door sensor. Once paired, mount your sensor within a 10m range and your profile kit is ready to go.

Registered Design Rights - 6077026

Designed in the UK

Our expertise and industry knowledge is an integral part of our business with our in-house product development and design team based here in the UK.

Product specification

Finish
Aluminium

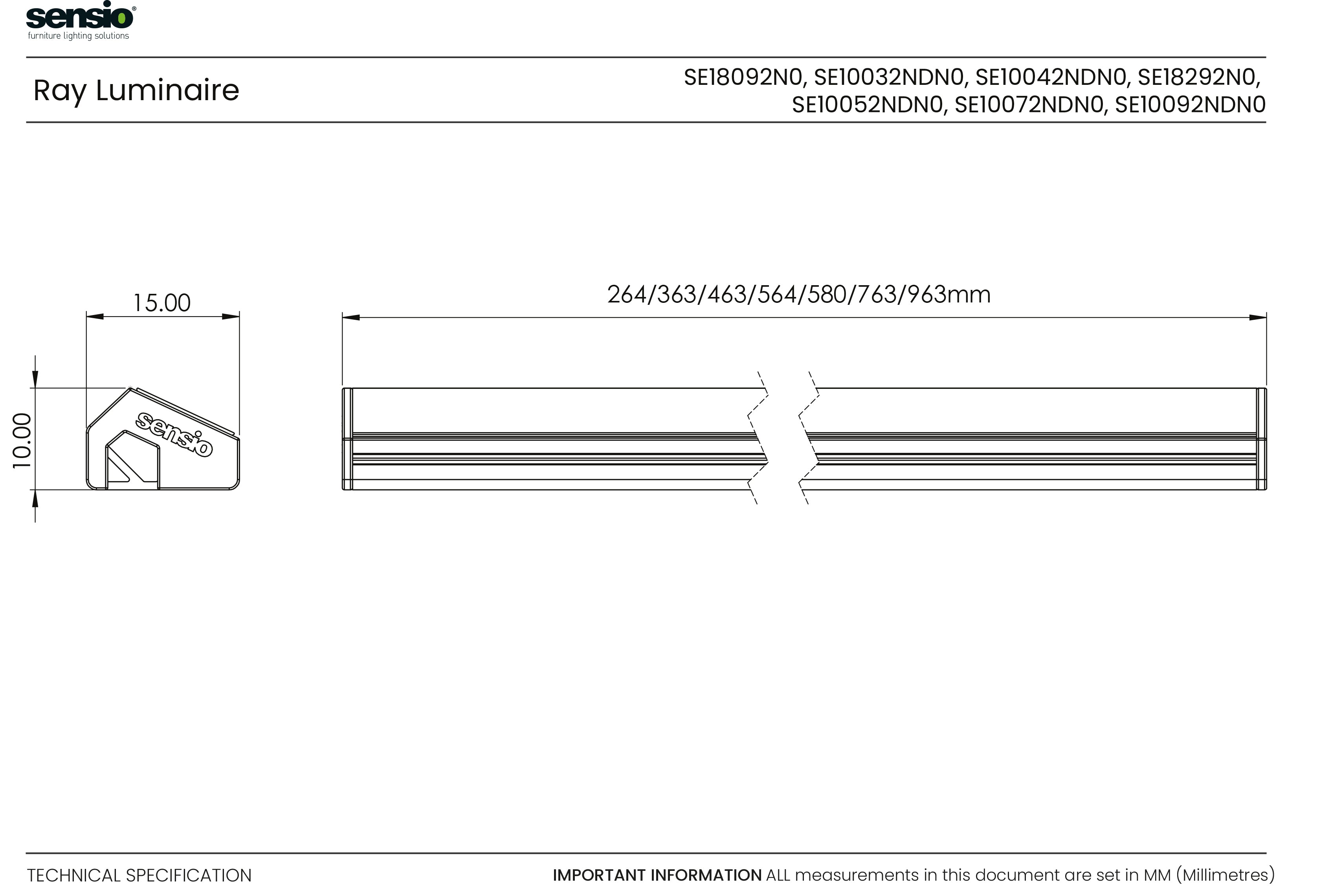

Dimensions
363mm x 15mm x 10mm

463mm x 15mm x 10mm

763mm x 15mm x 10mm

963mm x 15mm x 10mm
Cable length
1500mm
Wattage
4.8W/m
Voltage
240V
Light technology
Single Colour (Natural White)
Kelvins
4000K
Lumens
540 lm/m

Technical Information

View and download the product details and technical specifications
